Salient Features

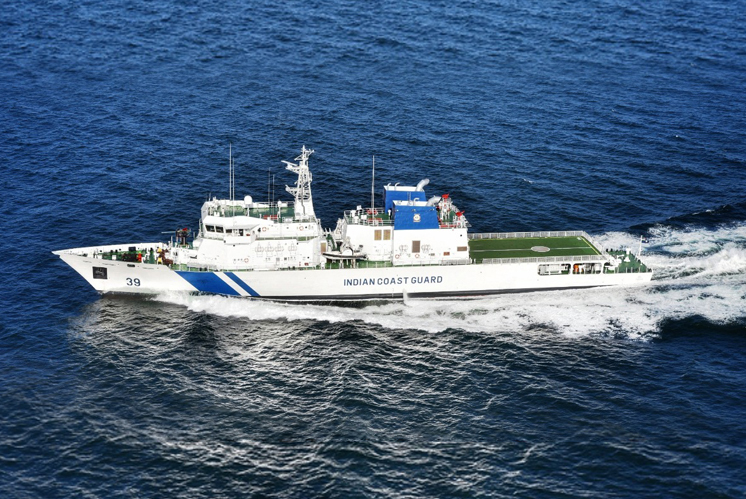

- In-house design
- The OPVs are capable of fulfilling the following roles:
• Protection of offshore assets
• MIO and VBSS operations
• Presence-cum-Surveillance Missions
• Support of Special Operations
• Out of area contingency Ops
• Non-Combatant Evacuation Ops
• Convoy Operations/ Anti-Piracy Missions
• Counter Infiltrations Ops
• Anti-Poaching/ Trafficking
• Search and Rescue Missions - This OPVs have an over length of 115m and is capable of achieving a speed of 23 knots.
- The ships are propelled by Twin Diesel engine with Controllable Pitch Propellers.
- Accommodation facility for up to 150 crew.
- The vessel has been designed to house containerized module of specific roles such as HADR, Non-Combatant Evacuation Ops, Hospital, Fleet maintenance support etc.
- The vessel has a flight deck and hangar facility for one large helicopter up to 11tons.
- The vessel is fitted with a 76mm Main Gun and 2 nos. each of 30mm and 2 nos. of 12.7mm guns and with provisions for carrying VSHORADS and other small arms and ammunition.
- MDL can offer a customized version of this design to suit the customers’ requirements.
Main-Particulars
Length
Displacement
Speed
90-115 m
3000 T
23-28 knots
Salient Features

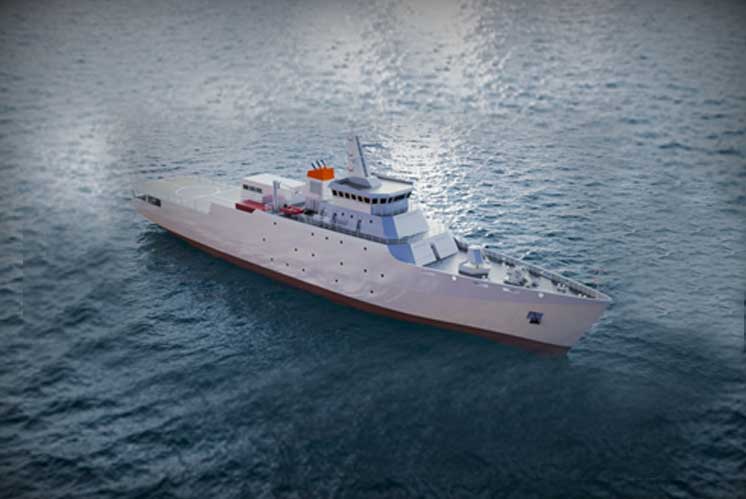

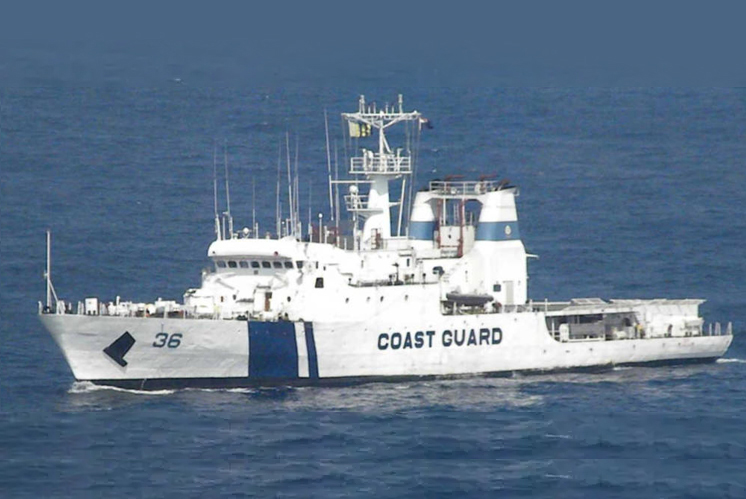

- In-house design
- It is a medium range weapon surface platform capable of operation in maritime zones and around island territories
- The vessel is primarily designed for EEZ and Coastal patrolling including shallow waters, Fisheries protection, anti-smuggling and anti-terrorist and anti-piracy operations. The vessel can also provide assistance during maritime pollution response operation and can switch over wartime roles.
- The vessel has an overall length of 55 m and is capable of achieving a speed of 27 knots.
- The ships are propelled by Twin Diesel Engine with CPP
- The vessel is fitted with a 30 mm Gun and 2 Nos' of 12.7 mm and with provisions for carrying small arms and ammunition.
- Accommodation facility for 42 crew.
- A variant of this design capable of achieving 33 knots with three water jet propulsion is also available
Main-Particulars
Length
Speed
55 m
27 knots
Salient Features

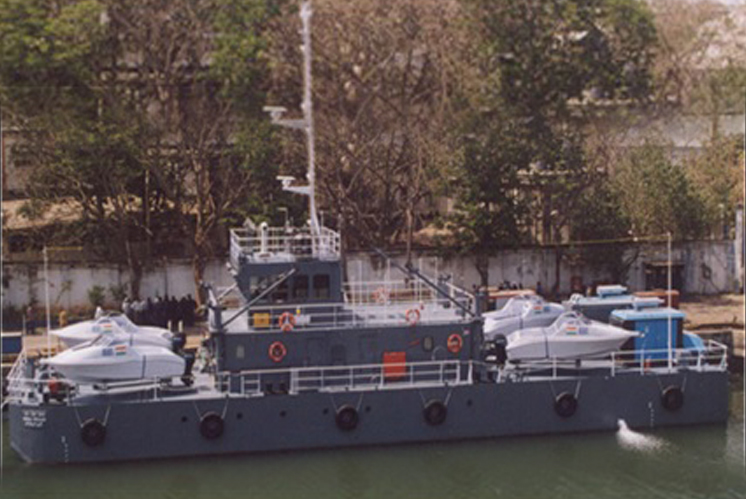

- Act as floating base for the flotilla of fast patrol boats
- Intended for supplying fuel, fresh water and provisions to the smaller fast patrol boats
- Provisions for LMGs and MMGs on board
- Stowage facility on deck for four fast patrol boat of 6.4 m length with speed of 29 knots
- Lodging facilities for 37 persons for two weeks
Main-Particulars
Length
Breadth
Displacement
Speed
34.5 m
9.5 m
338.5 T
37 knots
Salient Features

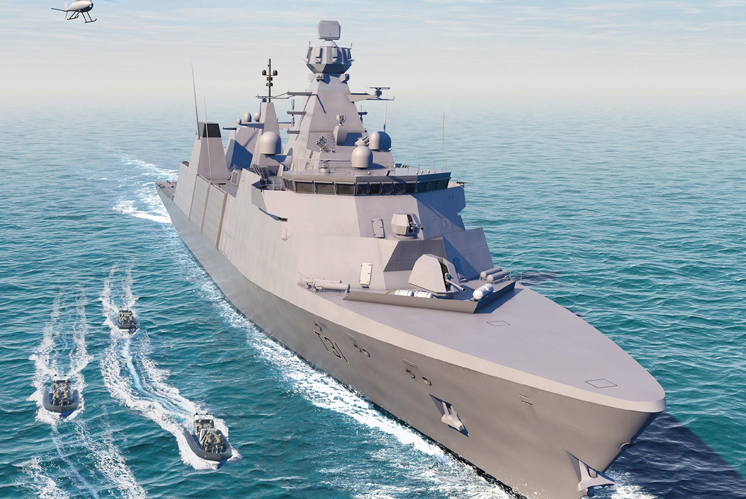

- In-house design
- CODAG configuration
- Waterjet Propulsion
- Designed for handling asymmetric threats
- It is provided with Weapon fit for Anti-Ship Warfare, Surface to Air Missile (SAM), Close In Weapon System (CIWS)
- It is designed to withstand Nuclear, Biological and Chemical Damage (NBCD)
Main-Particulars
Length
Breadth
Draught
Depth
Speed
Displacement
Complement
89.1 m
12 m
3.26 m
6.7 m
33 knots
1417 T
80 persons
